Hydro-Testing Application

Specializing in standard and custom high pressure valves for
water hydraulics and other high pressure water systems.

Medium Pressure Hydro-Tester

Model #D-1012,
1-1/4” 3,500 PSI Two-Way Valves used to fill cast iron pipes with water for hydrostatic pressure testing. The larger model #D-1014, 2” 3,000 PSI valve is used to purge air as the pipe fills with water, then decompress after the test is complete.

Medium Pressure Hydro-Tester

Model #D-1014,
2” Two-Way and Model #D-1005, 3” Three-Way Valves. This wall of valves allows operators to select which pumps and accumulators are to be used for hydrostatic pressure testing of cast iron pipe.

Hydro-Testing Of Steel Pipe

Model #D-1015-AL,
3” 4,200 PSI Two-Way Valve used to purge air from the test pipe as it fills, then open at the end of the test to decompress and drain the water.

hydrostatic-testing-img (5)

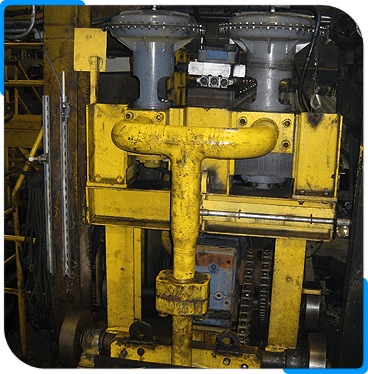

Hydro-Testing Of Steel Pipe

Model #D-1015-AL,
3” 4,200 PSI Two-Way Valve and Model #D-1022-V, 4” 4,200 PSI Two-Way Valve in parallel provide high volume water for quick filling of the test pipe. When the test is complete, both valves are opened to decompress and drain the water.

hydrostatic-testing-img (6)

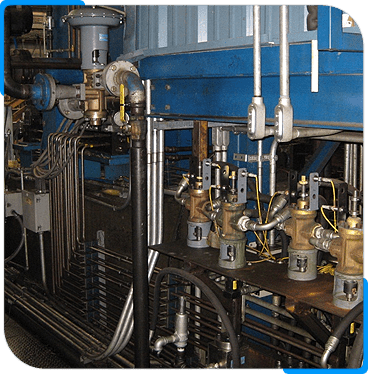

Hydrostatic Testing Of Steel Pipe

Model #D-1012-L,
1-1/4” 3,600 PSI Two-Way Valves and model #D-1004-MOD, 2” 3,500 PSI Three-Way Diverter Valve used to automate the pressure testing of steel pipe. Small valves fill several pipes simultaneously, and the large valve is used to fill before pressurizing and decompress after testing.

hydrostatic-testing-img (7)

Hydro-Test Stand

Model #D-1004-MOD,
2”, 3,000 PSI Diverter Valve with 4-bolt SAE code 61 ports.

hydrostatic-testing-img (1)

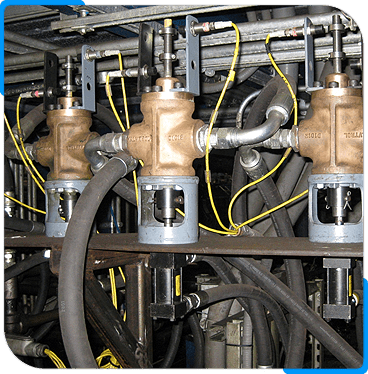

Hydro-Testing Of Steel Pipe

Model #D-1012-L
Cylinder Operated Two-Way Valves with hydraulic operators have proximity switches mounted to verify if the valves are open or closed.
