4” Normally Open Balanced 2-Way Valve
Specializing in standard and custom high pressure valves for
water hydraulics and other high pressure water systems.
water hydraulics and other high pressure water systems.
4” NORMALLY OPEN BALANCED 2-WAY/2-POSITION VALVE
FOR WATER, 95/5, OIL OR OTHER LIQUIDS
The Valv-Trol 4” Normally Open Balanced 2-Way Valve Model D-1022
) is our 4” Balanced 2-Way Valve in its normally open configuration. (See Bulletin
A-30 for 4” Normally Closed version.) This valve is similar to our smaller Balance
Way Valve (see Bulletin A-5), but comes standard with a steel body. This gives
us great flexibility in designing the valve to meet your exact requirements
Standard model has 4-bolt socket weld flanges
Compact to save money, as well as space, since extra companion flanges are not needed. Other flanges available..
Compact to save money, as well as space, since extra companion flanges are not needed. Other flanges available..
Other versions of this valve carry conservative ratings up to
6,000 PSI (415 Bar).
Maintenance is simplified
Can be fully serviced without removal from the line.
Can be fully serviced without removal from the line.
| Port | Max | Construction* | |||||
|---|---|---|---|---|---|---|---|
| Model | Size | PSI * | Cv | Body | Replaceable Trim | Seals | |
| D-1022-S | 4” Flanged | 3,500 (240 Bar) | 153.0 | Steel | Hardened S.S. | Buna N | |
*Consult factory for special requirements..
The Valv-Trol Advantage .
Many parts of Valv-Trol Valves are interchangeable between the same size 2-way, 3-way, and check valves. This helps you to reduce your spare parts inventory and allows us to maintain a more complete inventory for your emergency availability and shorter lead times
Many parts of Valv-Trol Valves are interchangeable between the same size 2-way, 3-way, and check valves. This helps you to reduce your spare parts inventory and allows us to maintain a more complete inventory for your emergency availability and shorter lead times
Our valves are all subjected to 100% pressure testing to ensure a drop
tight seal before we ship to our customers.
LOW FLOW 2-WAY AND 3-WAY VALVES
BULLETIN A-29 , part 2
MODEL D-1022-S

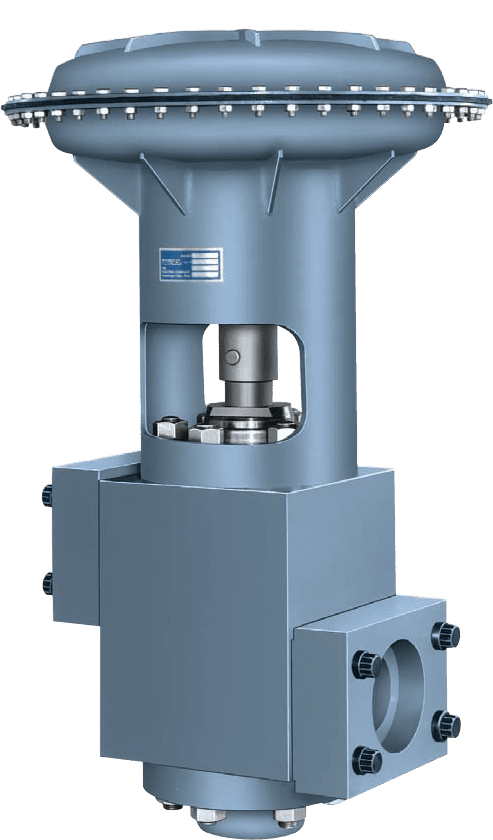

VALVE MODEL #D-1022-S SHOWN—MANY OTHER VERSIONS AVAILABLE
THE VALV-TROL CO., STOW, OHIO
