ANGLE CHECK VALVES
FOR WATER, 95/5, OIL OR OTHER LIQUIDS

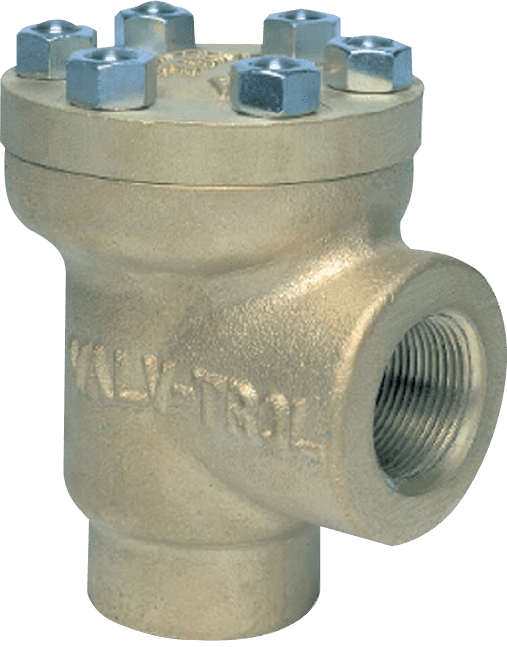

The Valve-Trol Angle Check Valve is designed for the roughest industrial
conditions. Because of its rugged construction, it is capable of handling
pressures up to 3,500 PSI (240 Bar) (Higher pressure ratings are available.
Please consult factory.) This valve, unlike some competitors’ valves, is
specifically designed for severe water hydraulic service
Replaceable seats and discs are made of hardened stainless steel.
Proven to be very resistant to the effects of corrosion, wear, and wire drawing for longer service life.
Proven to be very resistant to the effects of corrosion, wear, and wire drawing for longer service life.
Metal-to-metal seating surface is lapped.
Gives drop-tight seal and is 100% pressure checked before shipment…
Gives drop-tight seal and is 100% pressure checked before shipment…
Spring-loaded design.
Will function properly when mounted in any position
Will function properly when mounted in any position
Maintenance is simplified
Will function properly when mounted in any position
Will function properly when mounted in any position
| Outlet Port | Inlet Port | Construction * | ||||
|---|---|---|---|---|---|---|
| Model | Port Size | Port | Port | Max.PSI * | Body | Replaceable Trim |
| B-1000 | 3/4" | 1/2” or 3/4" NPT | 3/4" NPT | 3500 (240 Bar) | Bronze | Hardened S.S. |
| B-1001 | 1" | 3/4” or 1" NPT | 1" NPT | 3500 (240 Bar) | Bronze | Hardened S.S. |
| B-1002 | 1-1/4" | 1” or 1-1/4" NPT | 1-1/4" NPT | 3500 (240 Bar) | Bronze | Hardened S.S. |
| B-1003 | 1-1/2" | 1-1/4” or 1-1/2" NPT | 1-1/2" NPT | 3500 (240 Bar) | Bronze | Hardened S.S. |
| B-1004 | 2" | 1-1/2” or 2" NPT | 2" NPT | 3500 (240 Bar) | Bronze | Hardened S.S. |
| B-1005 | 3" | 2-1/2” or 3" NPT | 3" NPT | 3500 (240 Bar) | Bronze | Hardened S.S. |
| B-1006 | 4" | 3” or 4" NPT | 4" Flanged | 3500 (240 Bar) | Steel | Hardened S.S. |
Larger Sizes available. *Consult factory for special requirements.
The Valv-Trol Advantage
Many parts of Valv-Trol Valves are interchangeable between the same size 2-way, 3-way, and check valves. This helps you to reduce your spare parts inventory and allows us to maintain a more complete inventory for your emergency availability and shorter lead times
Many parts of Valv-Trol Valves are interchangeable between the same size 2-way, 3-way, and check valves. This helps you to reduce your spare parts inventory and allows us to maintain a more complete inventory for your emergency availability and shorter lead times
Our valves are all subjected to 100% pressure testing to ensure a drop
tight seal before we ship to our customers.
OFor higher pressures, different port connections, or other special
requirements, please contact the factor.
ANGLE CHECK VALVES
FOR WATER, 95/5, OIL OR OTHER LIQUIDS
On 3” valves, install cone spring with small end in the disc.
| VALVE NUMBER | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| B-1000 | 1/2” or 3/4” | 3/4” | 3” | 4-1/2” | 2-1/4” | 2-1/4” |
| B-1001 | 3/4” or 1” | 1” | 4” | 5-1/2” | 2-1/2” | 2-1/2” |
| B-1002 | 1” or 1-1/4” | 1-1/4” | 4” | 5-3/4” | 2-5/8” | 2-3/4” |
| B-1003 | 1-1/4” or 1-1/2” | 1-1/2” | 4-7/8” | 6-1/4” | 3” | 3” |
| B-1004 | 1-1/2” or 2” | 2” | 4-7/8” | 7-3/8” | 3-1/4” | 3-1/4” |
| B-1005 | 2-1/2” or 3” | 3” | 7” | 11” | 4-3/4” | 4-3/4” |
| B-1006 | 3” or 4” | 4” | 9” | 14-5/8” | 6-3/4” | 8-3/8” |
parts list
| Ref. No. | Valve No. | B-1000 | B-1001 | B-1002 | B-1003 | B-1004 | B-1005 | B-1006 |
|---|---|---|---|---|---|---|---|---|
| 1 | Studs | A-1250 | A-1256 | A-1256 | A-1260 | A-1260 | A-1264 | R-10200 |
| 2 | Stud Nuts | R-4713 | R-4715 | R-4715 | R-4716 | R-4716 | R-4718 | - 0 - |
| 3 | Cap | A-1602 | A-1606 | A-1606 | A-1610 | A-1610 | A-1612 | A-1618 |
| 4 | Gasket | R-4950-125 | R-4950-227 | R-4950-227 | R-4950-232 | R-4950-232 | R-4950-243 | R-4950-249 |
| 5 | Spring | A-1720-A | A-1726-A | A-1726-A | A-1730-A | A-1730-A | A-1732-A | A-1734-A |
| 6 | Disc | A-1320 | C-1318 | C-1318 | C-1322 | C-1322 | C-1324 | A-1395 |
| 7 | Seat Ring | A-1402 | A-1406 | A-1406 | A-1410 | A-1410 | A-1412 | A-1414 |
| 8 | Body | B-1252 | B-1254 | B-1256 | B-1258 | B-1260 | D-1314 | D-1323 |
| Flange | - 0 - | - 0 - | - 0 - | - 0 - | - 0 - | - 0 - | A-3836 | |
| Flange O-Ring | - 0 - | - 0 - | - 0 - | - 0 - | - 0 - | - 0 - | R-4950-238 |
THE VALV-TROL CO., STOW, OHIO
