Series of Low Flow Valves
Specializing in standard and custom high pressure valves for
water hydraulics and other high pressure water systems.
water hydraulics and other high pressure water systems.
LOW FLOW 2-WAY AND 3-WAY VALVES
FOR WATER, 95/5, OIL OR OTHER LIQUIDS

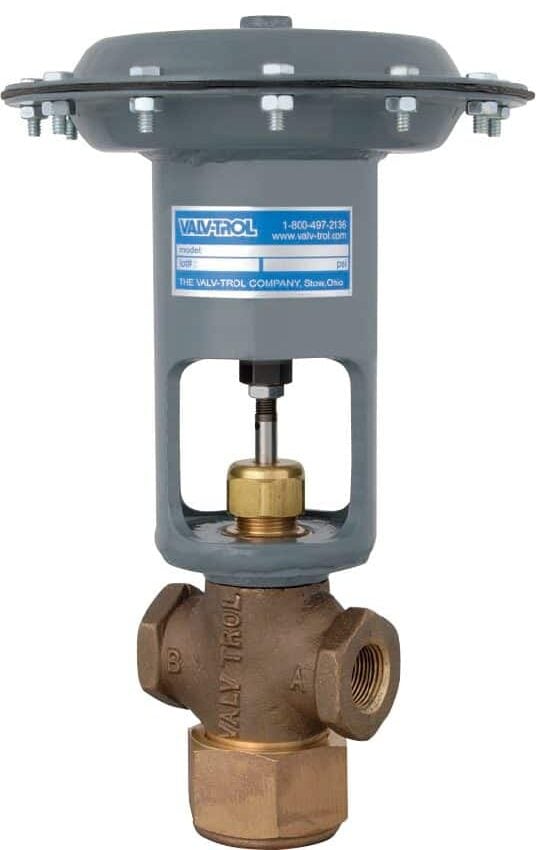

The Valv-Trol Series of Low Flow Valves (is intended for general
industrial use where lower flow rates under 25 GPM (95 LPM) are expected
and remote operation is desired. Their rugged steel diaphragm tops, corrosion
resistant bodies, and hardened stainless steel trim make them ideally suited
for water or oil hydraulic systems
Pressure can be piped into any port but because of their semi-balanced design, shifting in one flow direction may be smoother than in
the other. (Please consult factory.)
The compression style packing is easily adjusted
Suitable for a wide range of fluids and temperatures.
Suitable for a wide range of fluids and temperatures.
Unique skirted valve disc
Helps gradually start and stop the flow of fluid during shifting..
Helps gradually start and stop the flow of fluid during shifting..
Replacement seats and discs made of hardened stainless steel
Helps gradually start and stop the flow of fluid during shifting..
Maintenance is simplified
Helps gradually start and stop the flow of fluid during shifting..
Helps gradually start and stop the flow of fluid during shifting..
| Port Size | Construction* | ||||||
|---|---|---|---|---|---|---|---|
| Model | Type | (NPT) | PSI* | CV | Body | Replaceable Trim | Seals |
| C-0010 | 2-Way N.O. | 1/2"or 3/4” | 3500 (240 Bar) | 1.45 | Bronze | Hardened S.S. | TFE/Fiber |
| C-0008 | 2-Way N.C | 1/2"or 3/4” | 3500 (240 Bar) | 1.45 | Bronze | Hardened S.S. | TFE/Fiber |
| C-0001 | 3-Way | 1/2"or 3/4” | 3500 (240 Bar) | 1.45-1.70 | Bronze | Hardened S.S. | TFE/Fiber |
*Consult factory for special requirements..
The Valv-Trol Advantage .
Many parts of Valv-Trol Valves are interchangeable between the same size 2-way, 3-way, and check valves. This helps you to reduce your spare parts inventory and allows us to maintain a more complete inventory for your emergency availability and shorter lead times
Many parts of Valv-Trol Valves are interchangeable between the same size 2-way, 3-way, and check valves. This helps you to reduce your spare parts inventory and allows us to maintain a more complete inventory for your emergency availability and shorter lead times
Our valves are all subjected to 100% pressure testing to ensure a drop
tight seal before we ship to our customers.
3500 PSI (240 Bar) LOW FLOW NORMALLY OPEN 2-WAY
BULLETIN A-14 , part 2
MODEL C-0010
| PORT SIZE (NPT) | Table Header | |
|---|---|---|
| A | B | BODY NUMBER |
| 1/2” | 1/2” | B-0012-1 |
| 3/4” | 3/4” | B-0012-3 |
THE VALV-TROL CO., STOW, OHIO
3500 PSI (240 Bar) LOW FLOW NORMALLY CLOSED 2-WAY
BULLETIN A-14 , part 3
MODEL C-0008
| PORT SIZE (NPT) | Table Header | |
|---|---|---|
| A | B | BODY NUMBER |
| 1/2” | 1/2” | B-0012-1 |
| 3/4” | 3/4” | B-0012-3 |
THE VALV-TROL CO., STOW, OHIO

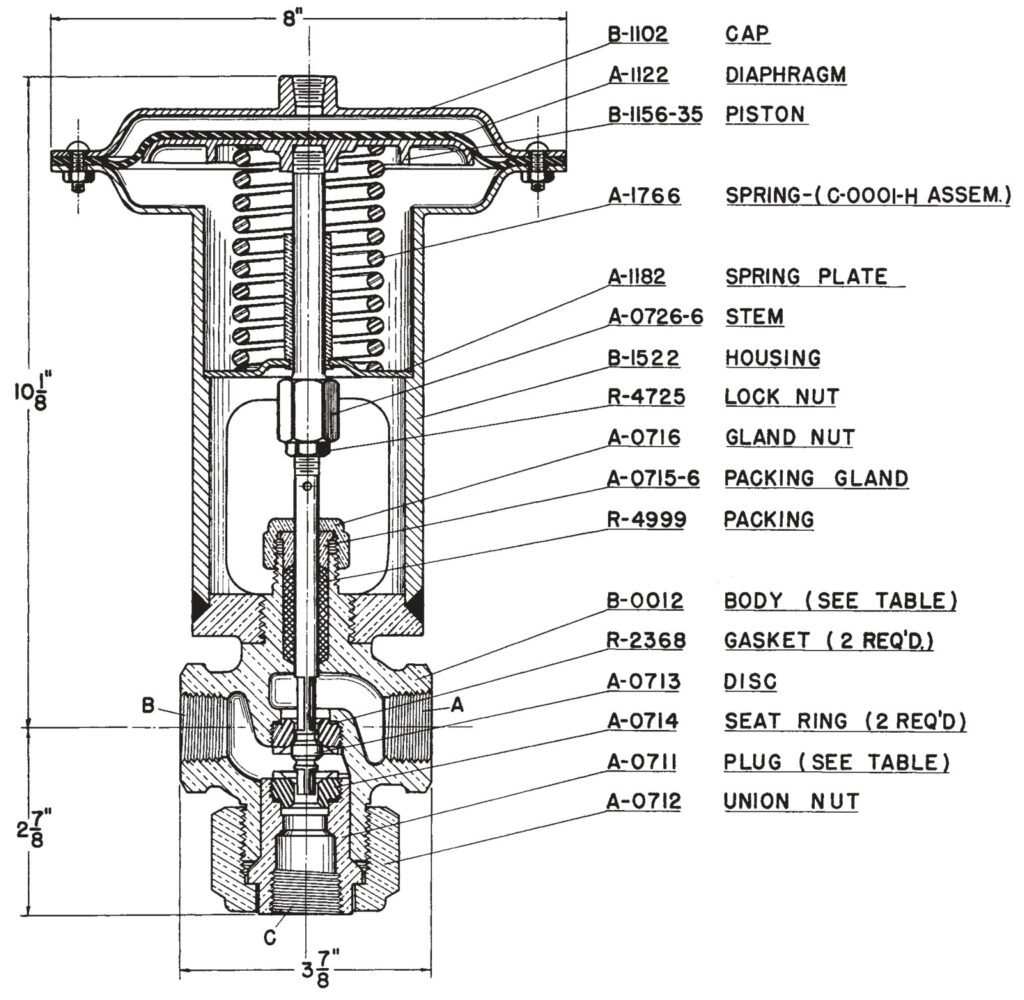

3500 PSI (240 Bar) LOW FLOW 3-WAY
BULLETIN A-14 , part 3
MODEL C-0001
| PORT SIZE (NPT) | Table Header | |
|---|---|---|
| A | B | BODY NUMBER |
| 1/2” | 1/2” | B-0012-1 |
| 3/4” | 3/4” | B-0012-3 |
| BOTTOM PORT SIZE (NPT) | PLUG NUMBER |
|---|---|
| 1/2" | A-0711-1 |
THE VALV-TROL CO., STOW, OHIO
