PRESSURE REDUCING (REGULATING) VALVES
FOR WATER, 95/5, OIL OR OTHER LIQUIDS

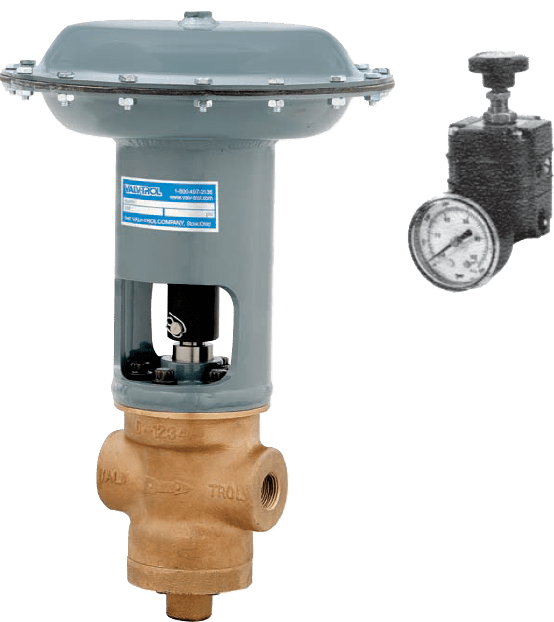

The Valv-Trol Pressure Reducing Valve is used to regulate or reduce primary
hydraulic pressure for presses and cylinders for tonnage control. It comes
complete with a Precision Air Regulator and Air Gauge.
Adjustment of hydraulic pressure is made by changing the air pressure
on the diaphragm top. The graph below shows the relationship of air
to hydraulic pressure.
Seat, disc, and piston assembly made of hardened stainless
steel.
Proven to be very resistant to the effects of corrosion, wear, and wire drawing for longer service life..
Proven to be very resistant to the effects of corrosion, wear, and wire drawing for longer service life..
Internally, the skirted discs provide a gradual change in the rate
of flow.
Proven to be very resistant to the effects of corrosion, wear, and wire drawing for longer service life..
Proven to be very resistant to the effects of corrosion, wear, and wire drawing for longer service life..
Seating surface is separate from throttling surface.
Even with accumulated wear on throttling surface, valve will shut off tightly. No need to provide constant bleed of fluid on secondary side
Even with accumulated wear on throttling surface, valve will shut off tightly. No need to provide constant bleed of fluid on secondary side
| Port | Max | Secondary | Net | Construction* | |||
|---|---|---|---|---|---|---|---|
| Model | Size | Pressure Rating | Pressure Rating | Area | Body | Replaceable Trim | Seals |
| D-1234 | 3/4"or 1” NPT | 4000 PSI (275 Bar) | 500 PSI to 3500 PSI 34 Bar to 241 Bar) | .058 Sq. In. | Bronze | Hardened S.S. | UHMWPE |
| D-1234-A | 1” NPT | 4500 PSI (345 Bar) | 500 PSI to 3500 PSI (34 Bar to 310 Bar) | .107 Sq. In. | Steel | Hardened S.S. | Polyurethane |
*Consult factory for special requirements..
Our valves are all subjected to 100% pressure testing to ensure a drop
tight seal before we ship to our customers.
PRESSURE REDUCING VALVE
BULLETIN A-31 part 2
MODEL D-1234
The disc, piston, and seat ring are available only as a matched 3-piece assembly
THE VALV-TROL CO., STOW, OHIO
